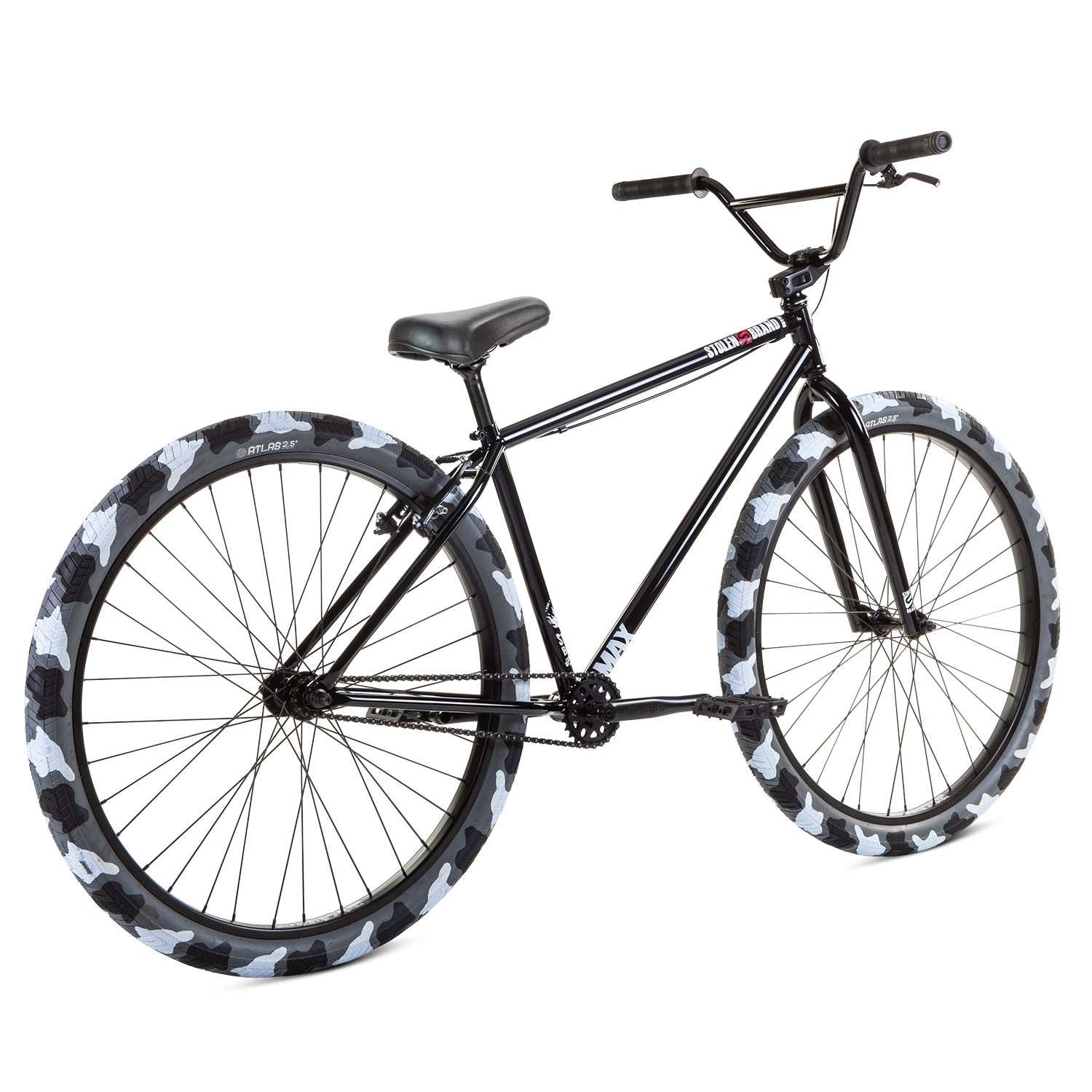

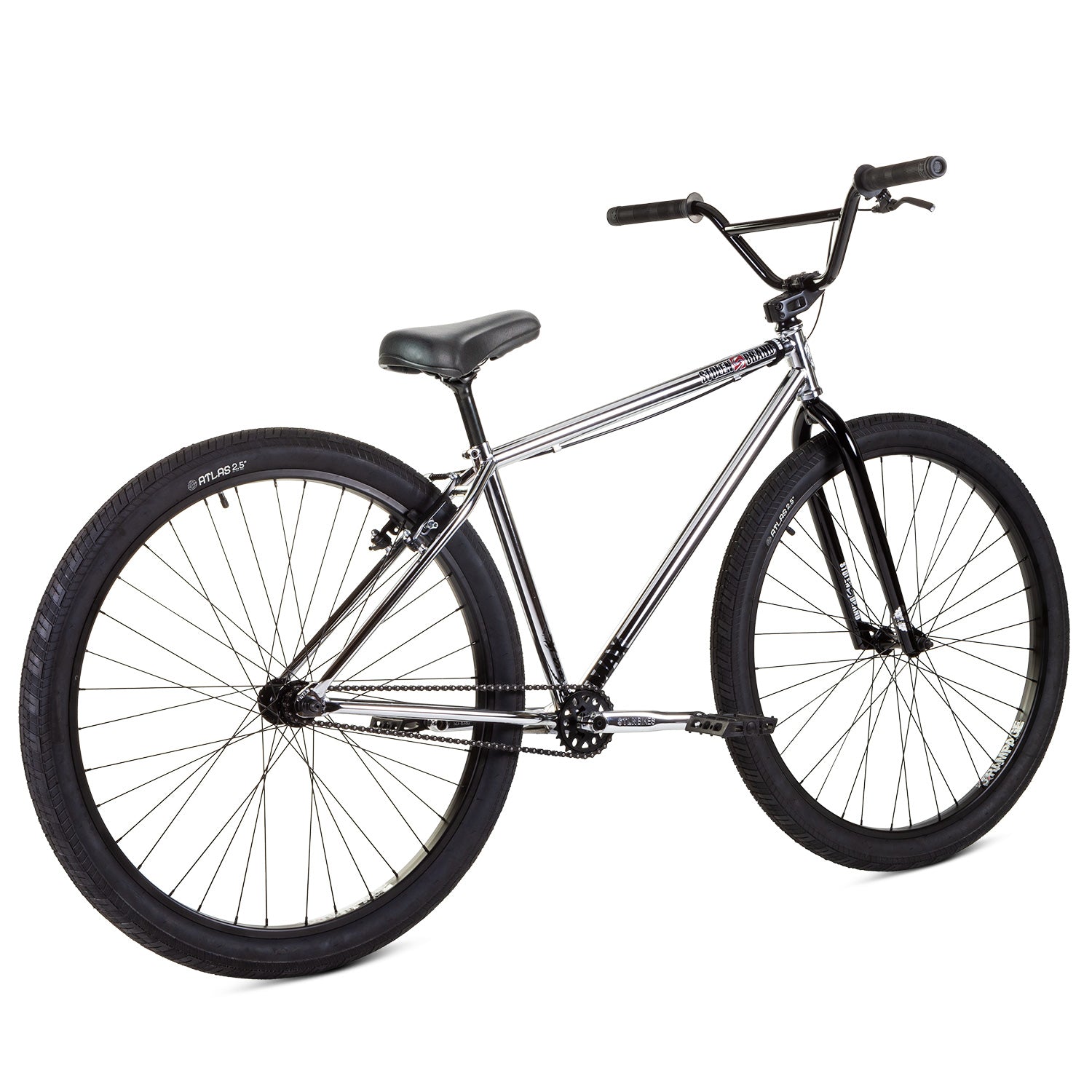

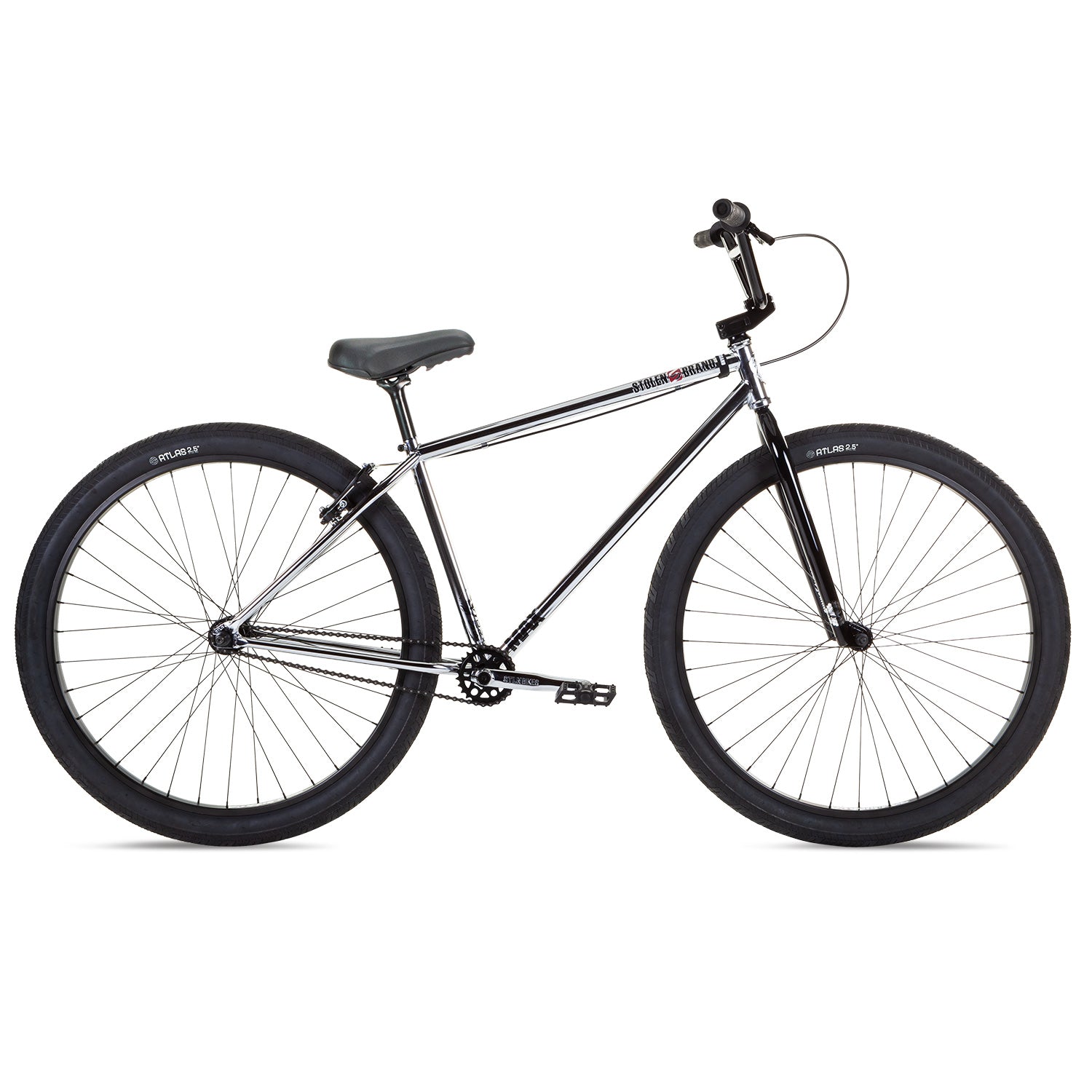

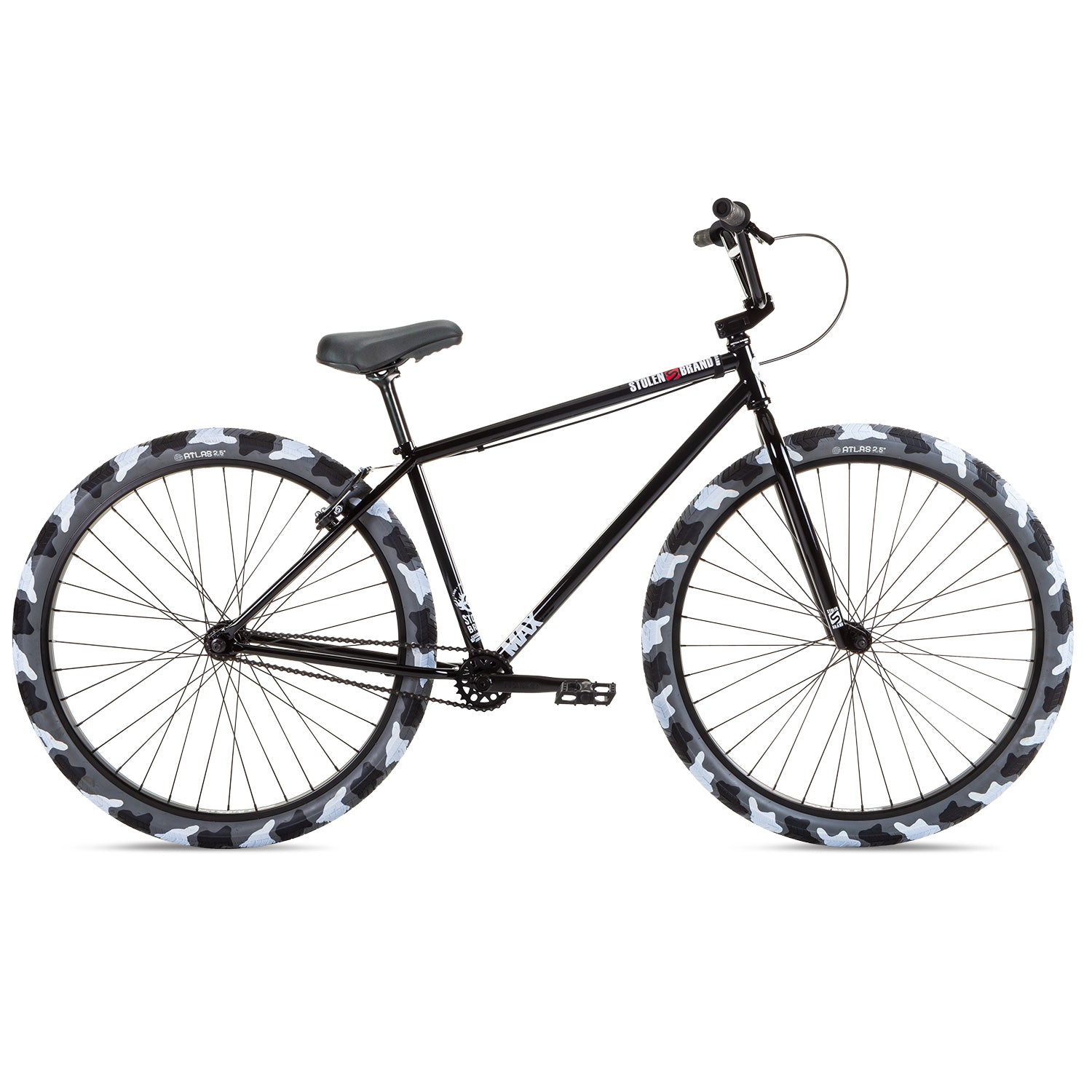

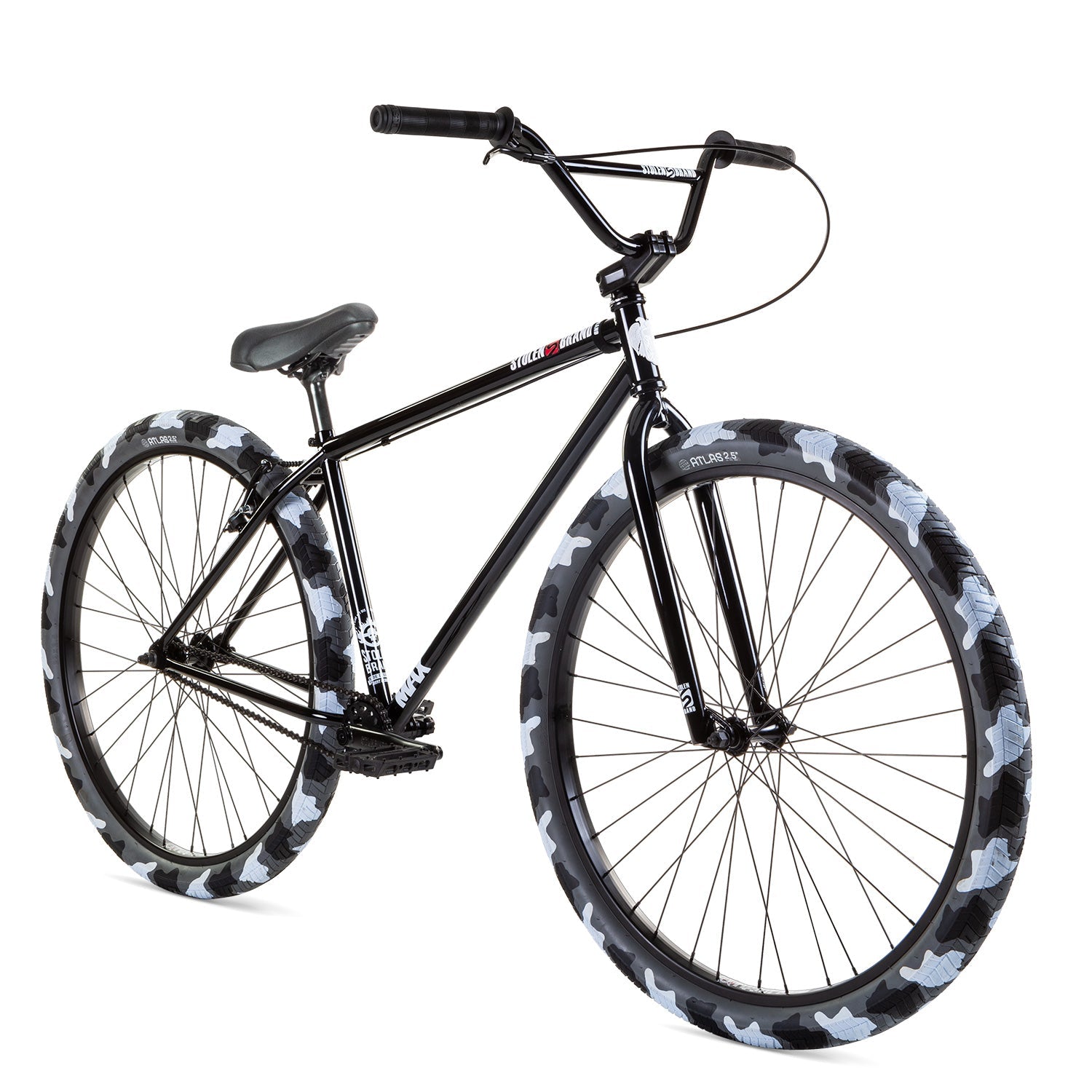

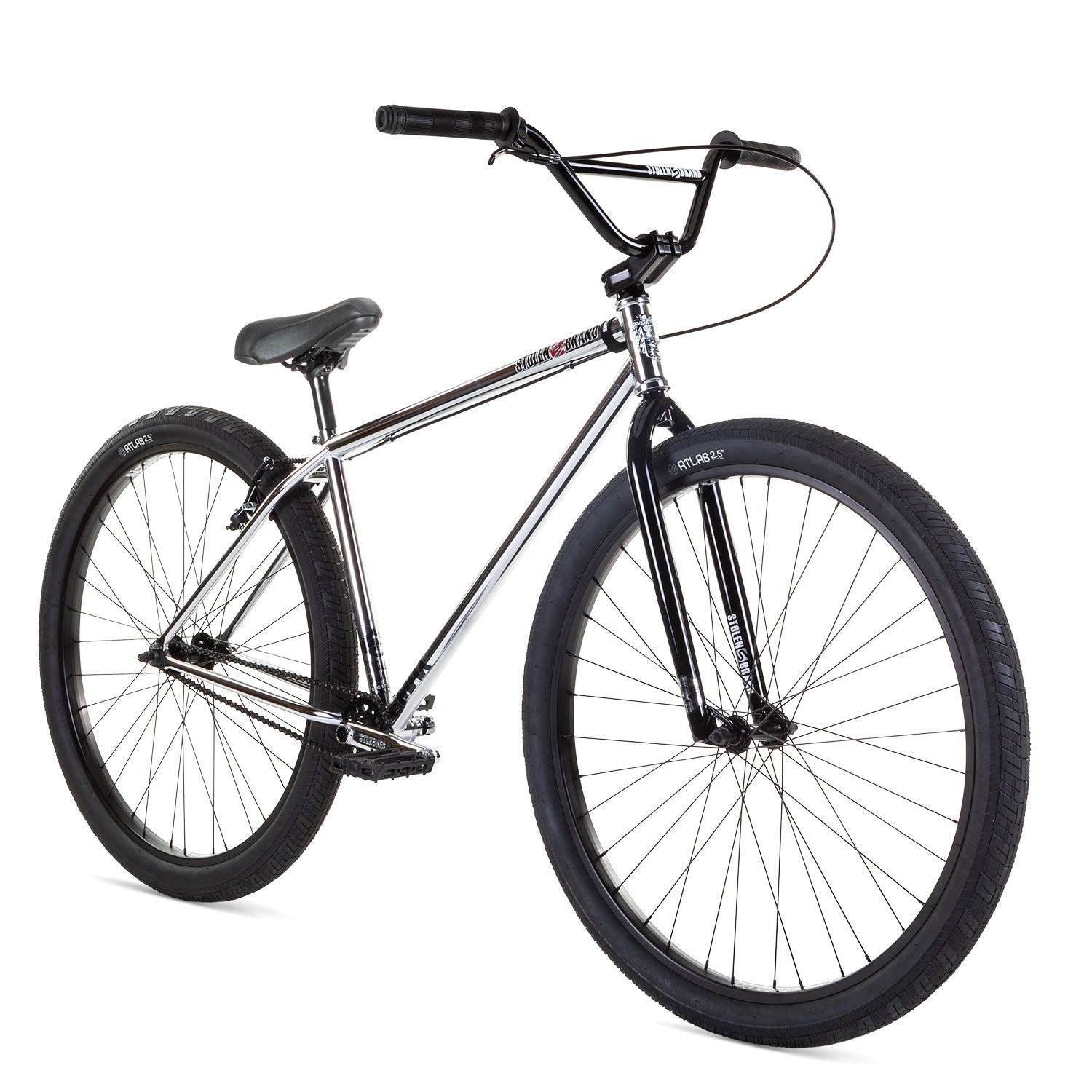

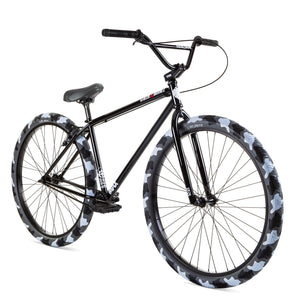

MAX 29" COMPLETE BIKE

DETAILED SPECIFICATIONS

Frame:  100% 4130 ChroMoly frame w/ "S-Bend" chainstays for bigger tires, integrated headtube, mid bb shell
Fork: 100% 4130 ChroMoly w/ tapered legs, notched dropouts & one-piece steerer w/ Compressor top-cap
Bars: 6.00” TallBoy, 2-Piece ChroMoly
Grips: Stolen Team Flanged, 165mm w/ Stolen Vortex rubber barends
Stem: Fiction Spartan top-load, 52mm reach
Headset: Fiction Savage Sealed Integrated
Brake Lever: Alloy w/ hinged clamp
Brakes: Alloy V-brake
Cranks:  Stolen MOB V3 Tubular 4130 ChroMoly Arms, 8 Spline ChroMoly Spindle, 175mm
Sprocket: Stolen 6061 Alloy, 6mm thick, 25T
Bottom Bracket: Sealed MID 19mm
Pedals: Stolen Thermalite w/ ChroMoly spindles
Chain: Z-410, Black
Front Hub: Stolen Rampage fully sealed, 3/8″ ChroMoly axle
Rear Hub: Rampage 6061 Alloy fully-sealed cassette w/ 14mm ChroMoly axle
Driver: 11t sealed, one-piece ChroMoly
Front Rim: Stolen Rampage 36H (double-wall)
Rear Rim: Stolen Rampage 36H (double-wall)
Seat: Mid-size padded, railed seat
Seat Post: 27.2mm Alloy 200mm length
Seat Clamp: Integrated
Front Tire: Fiction Atlas LP 2.50″
Rear Tire: Fiction Atlas LP 2.50″

Weight: Approx 29.45bs

Colors:  Chrome Plate or Black w/ Urban Camo Tires

GEOMETRY

Toptube Length: 23.25"
Chainstay Length: 18.0" (CtoC)
Headtube Angle: 71°
Seattube Angle: 72°
SeatTube Height: 16.15″ (CtoT)
Bottom Bracket Height: 12.00"
Fork Offset: 28mm
